¡@¡@The Shear Resisting Device is installed between the pier cap and girder, the functions are description
       as the follows:

¡@¡@¡@1. Resisting the design ultimate horizontal load
¡@¡@¡@2. No support the vertical load of superstructure, and no influence on the distribution of vertical load.
¡@¡@¡@3. With the elastic recovery ability, accommodating the SLS movements in the longitudinal direction because of
              thermal changes and concrete shrinkage & creep.
¡@¡@¡@4. With elastic elastomer and provide applicable energy dissipation and damping function in seismic condition.
¡@¡@¡@5.
The design shall conform to the following requirement: component safety after loading, control the deformation,
              no modify the dimension of bridge pier and superstructure, easily installation and replacement.

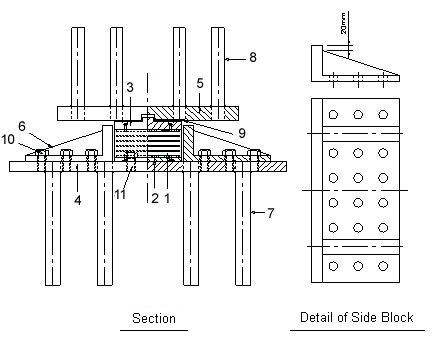

No. Components Materials
1  Laminated elastomeric
 bearing
¡@
2  Lower attachment plate  ASTM A572 Gr.50
3  Upper attachment plate  ASTM A572 Gr.50
4  Masonry plate  ASTM A572 Gr.50
5  Upper sole plate  ASTM A572 Gr.50
6  Side block  CNS 7143 SCW480
7  Lower anchor dowel  JIS G4051 S45C
8  Upper anchor dowel  JIS G4051 S45C
9  Stainless steel plate  ASTM A240 type316L
10  Side block connecting
 bolt
 F10T or 10.9
11  Lower attachment plate
 connecting bolt
 F10T or 10.9
Products photo Products photo
¡@
Side Block ultimate horizontal loading test ¡@
